Wash basin module

Wash basin mounting module

Cross bar for wash basin attachment 40-375 mm, height-adjustable

Cross bar with noise-insulated angle valve connections 80/160/320 mm, siphon elbow, siphon rubber and construction plug, height-adjustable

Galvanised, height-adjustable mounting feet 0 – 20 cm with slip resistance

Fastening material for wash basin installation (fastening bolts M 12 x 110 mm, protection hose, nuts, flat washers, cover caps)

Fastening material for installation feet

Material: Frame Steel

Surface: Frame Powder coat finish

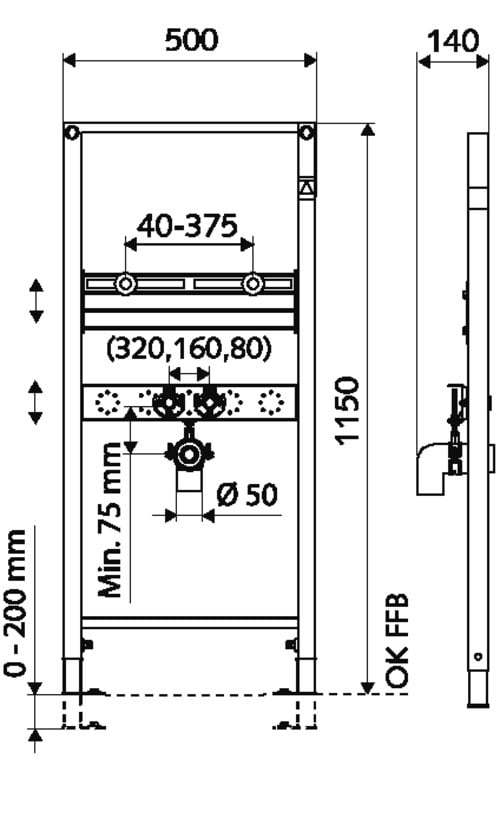

Dimensions: w 50 cm x h 115 cm

Waste water connection: Ø 50 mm

Water connection: 2x DN 15 G 1/2 AG (bottom)

Waste water outlet: Ø 50 mm/40 mm (by cutting to length)

Water outlet: 2x DN 15 G 1/2 IG
