WC module

WC module

WC concealed cistern 15 cm, actuation from top or front

Angle valve with regulating function, G 1/2 AG, noise class I

Flush pipe Ø 45 mm, with construction plug

Height-adjustable installation feet 0-20 cm

Reducer Ø 90 / 110 mm

WC connection set (supply Ø 45 mm, drain Ø 90/110 mm)

PP drain elbow Ø 90/90 mm, with construction plug

Fastening material for WC installation (fastening bolts M 12 x 200 mm, protection hoses, plastic collar bushings, nuts, flat washers, cover caps)

Fastening material for installation feet

Dual flush: Eco flush volume 3 l, Main flush volume 4/5/6/7 l adjustable (6 l factory setting)

Load capacity: max. 400 kg

Material: Frame Steel

Surface: Frame Powder coat finish

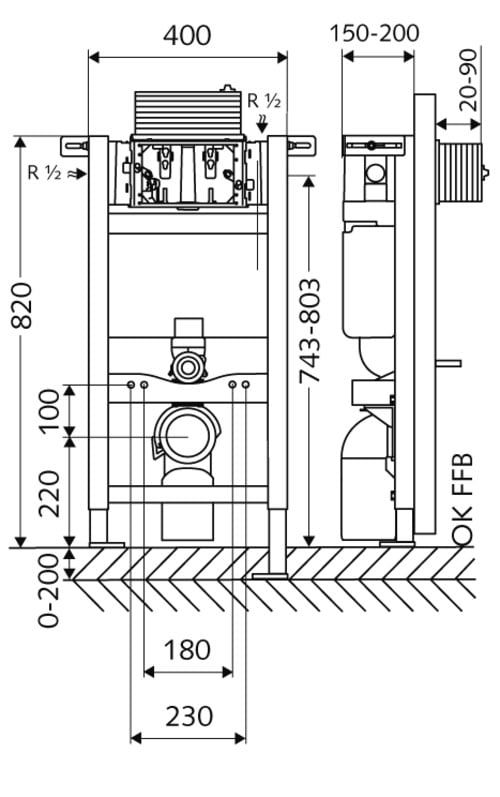

Dimensions: w 40 cm x h 82 cm

Waste water connection: Ø 90 /110 mm

Flush pipe connection: Ø 45 mm

Water connection: DN 15 R 1/2 AG (rear, top, sides)

Waste water outlet: Ø 90/110 mm

Certificates: Belgaqua, NF
