WC module

WC module

WC concealed cistern 12 cm, actuation from front

Angle valve with regulating function, G 1/2 AG, noise class I

Flush pipe Ø 45 mm, with construction plug

Galvanised, height-adjustable mounting feet 0 – 20 cm with slip resistance

PP drain elbow Ø 90/90 mm, with construction plug

Fastening material for WC installation (fastening bolts M 12 x 200 mm, protection hoses, plastic collar bushings, nuts, flat washers, cover caps)

Fastening material for installation feet

Dual flush: Eco flush volume 3 l, Main flush volume 4/5/6/7 l adjustable (6 l factory setting)

Load capacity: max. 400 kg (when using MONTUS wall bracket set)

Material: Frame Steel

Surface: Frame Powder coat finish

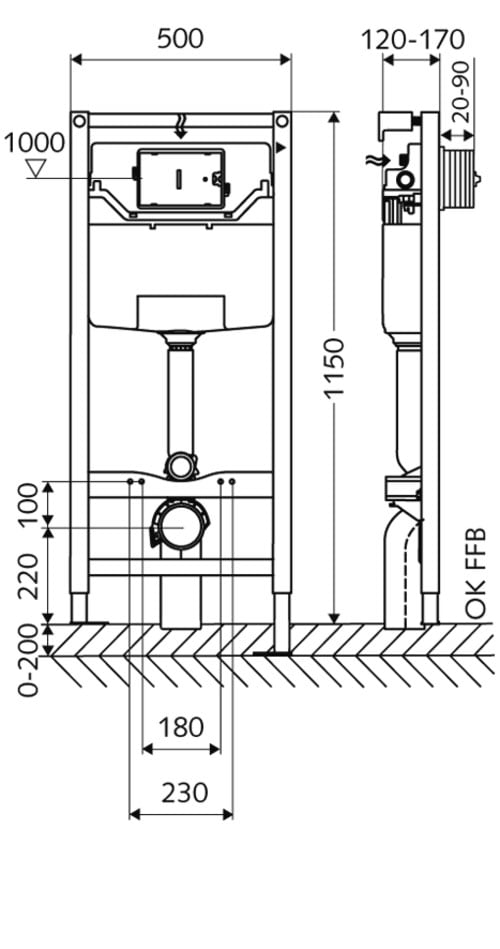

Dimensions: w 50 cm x h 115 cm

Waste water connection: Ø 90 /110 mm

Flush pipe connection: Ø 45 mm

Water connection: DN 15 R 1/2 AG (rear centre)

Waste water outlet: Ø 90/110 mm

Certificates: Belgaqua, NF
